Pulse Shapes

The pulse is calculated using the formula f(t)=exp(-(t-t0)^2/(2dt^2)cos(2*PI*f0*(t-t0)), where f0 is the carrier frequency, t0=1/(2*PI*df) is the pulse half-width and df is the half-bandwidth. The spectrum of this pulse is gaussian with center frequency, f0, and standard deviation df.

The pulse with f0=100 MHz and df=5 MHz. (Postscript version).

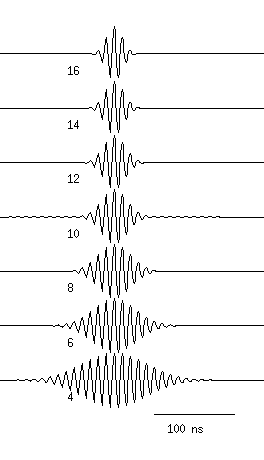

The pulse shape of the transmitted pulse when the center frequency is 100 MHz and f0 is 4, 6, ... 16 MHz.
