The magmatic struture of
Axial Volcano
on the Juan de Fuca Ridge
by William Menke, with coauthors Mike West, Maya Tolstoy, Spahr Webb and Rob Sohn
April 2001

Slides:

• Fig Cover PS File

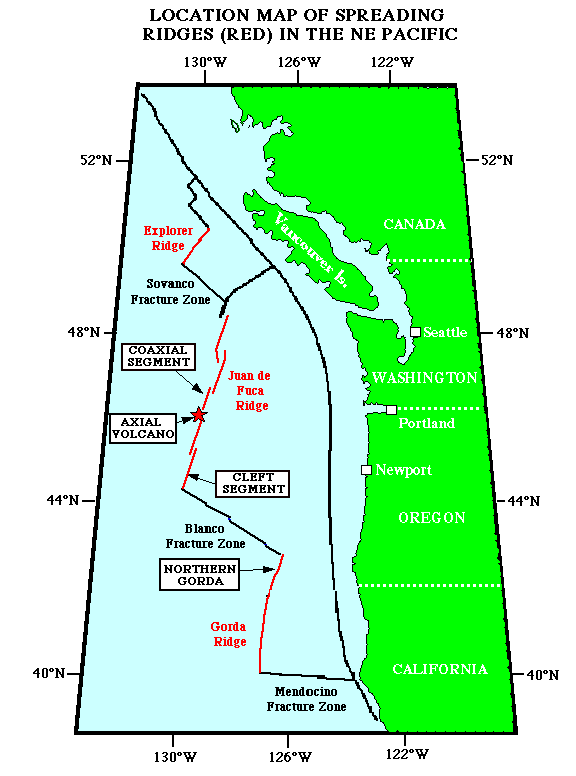

• Fig Orientation Map PS File

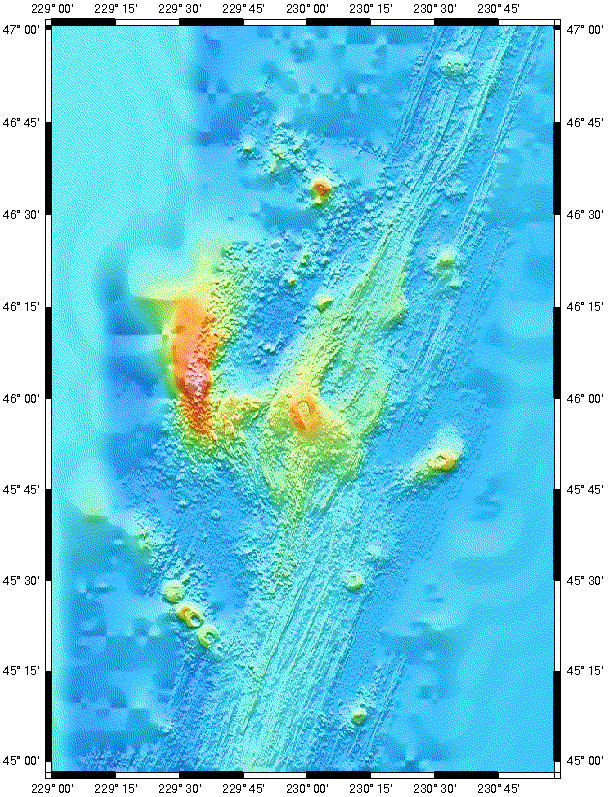

• Fig Regional Bathymetry PS File
• Fig Axial Bathymetry PS File
• Fig Perspective PS File

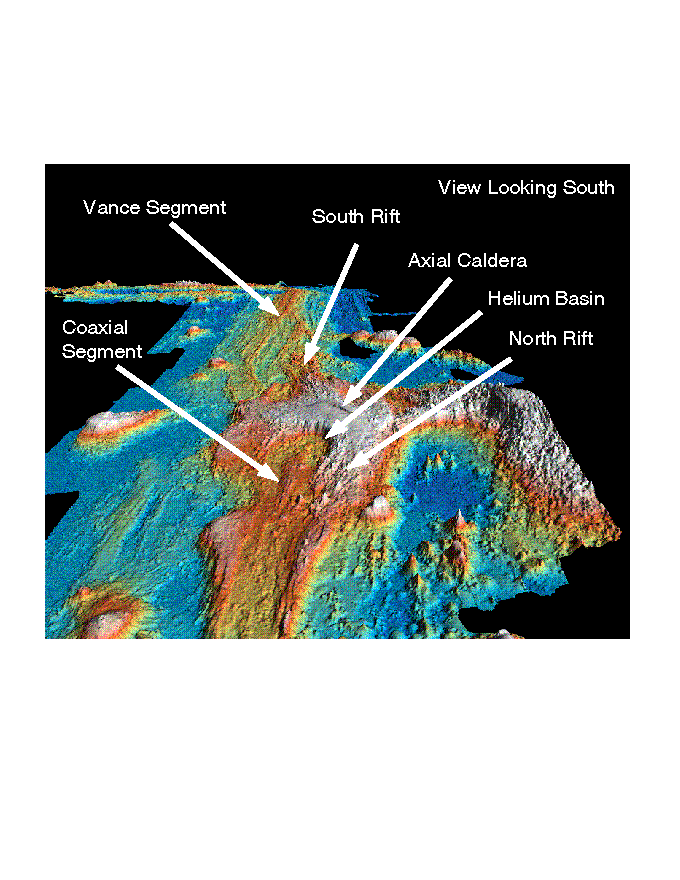

• Fig Perspective with names PS File

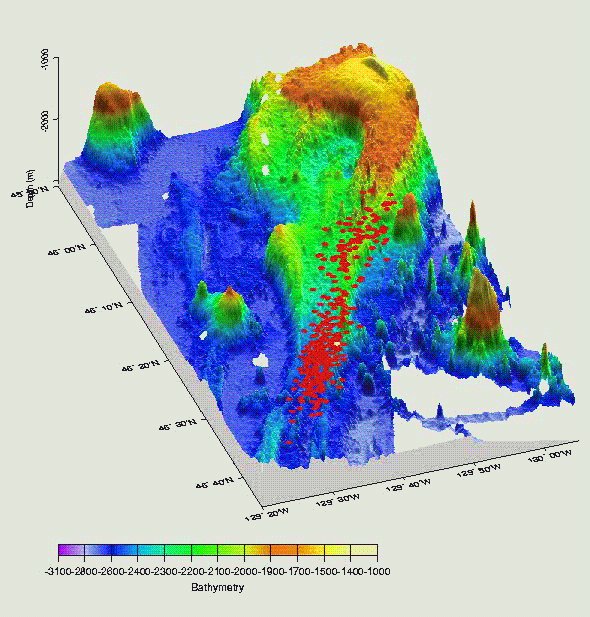

• Fig 1993 eruption PS File

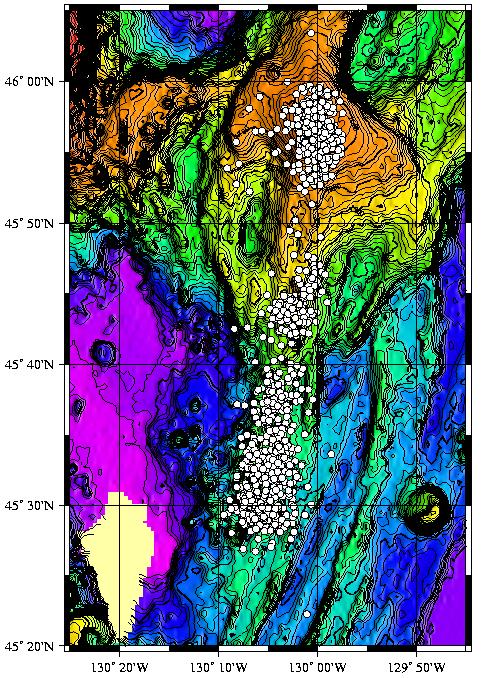

• Fig 1998 eruption PS File

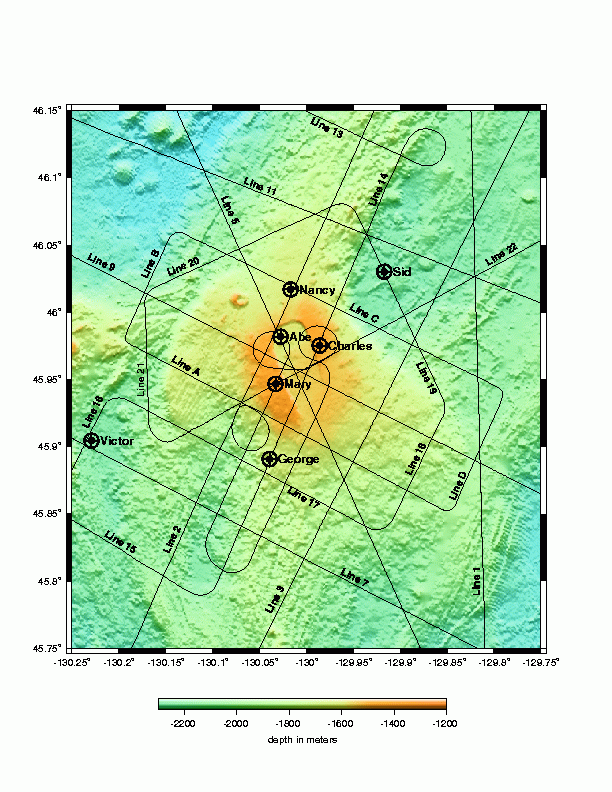

• Fig Our experimental Geometry PS File
• Fig Photo of Seismometer PS File

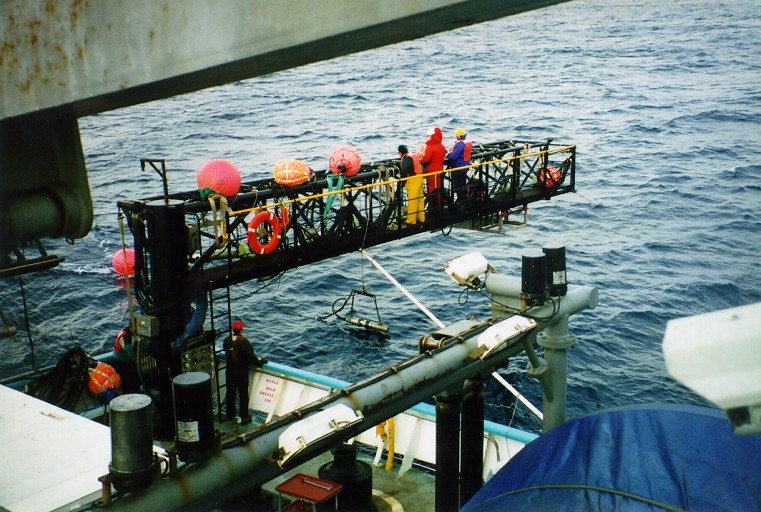

• Fig Photo of Airgun PS File

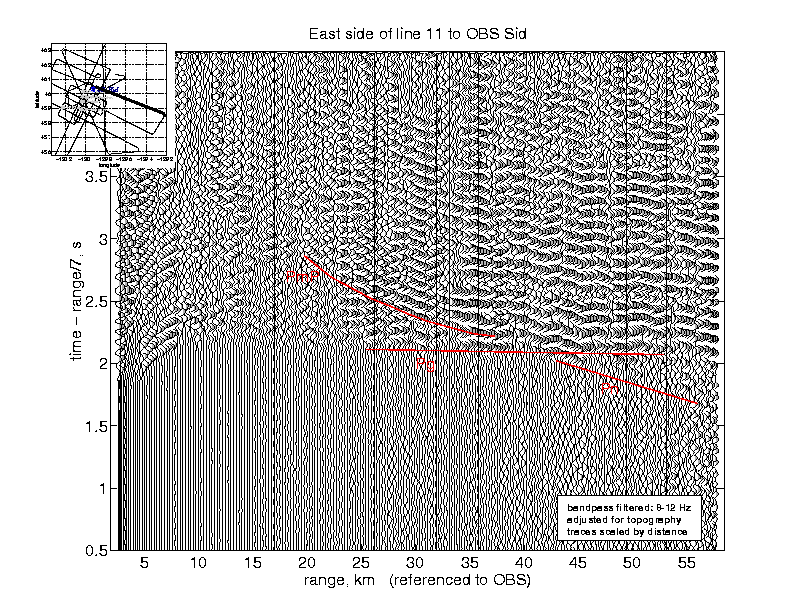

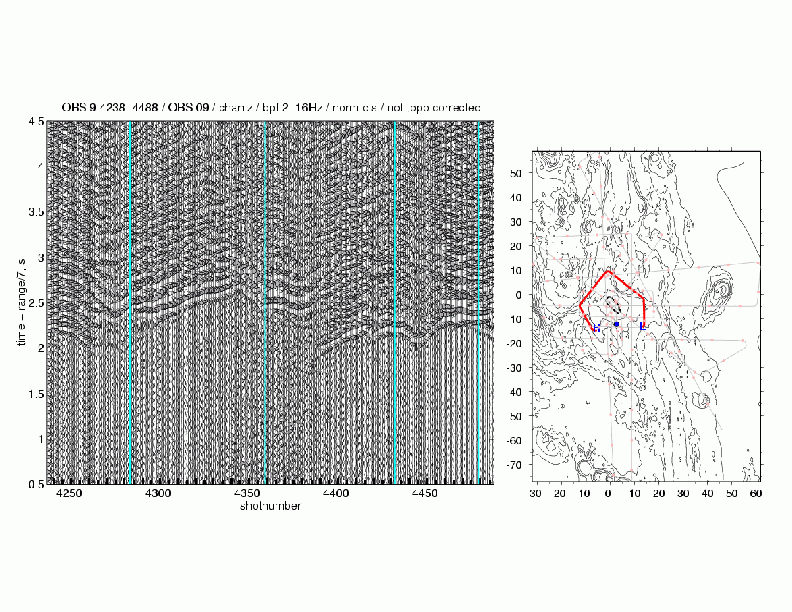

• Fig Record Secion showing Pg, Pn, PmP PS File

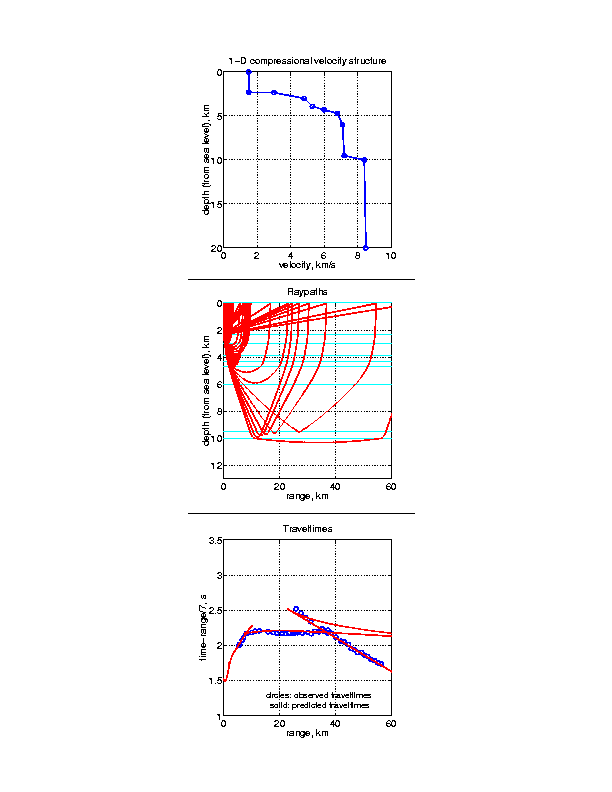

• Fig Interpretation with ray traveltime plots PS File
• Fig Fan shot record section PS File

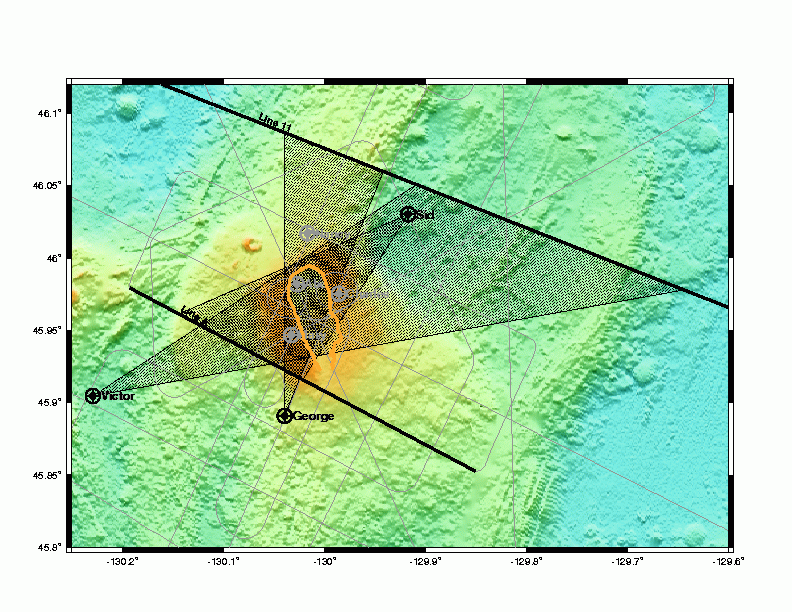

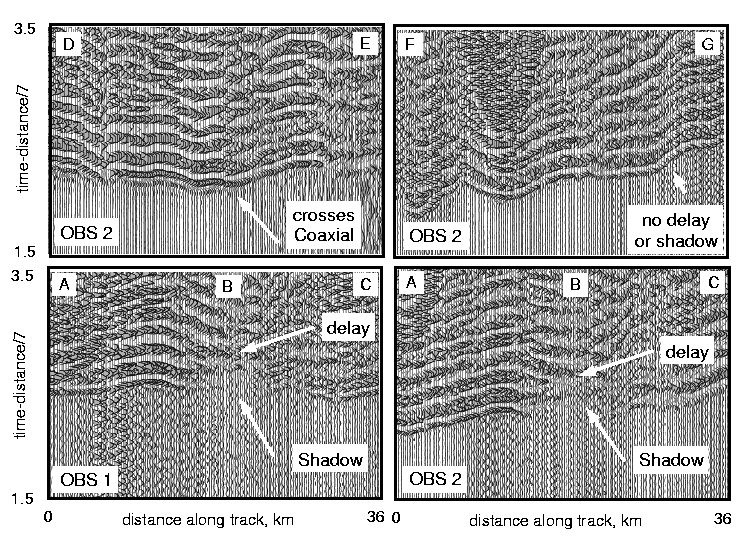

• Fig Shadows PS File

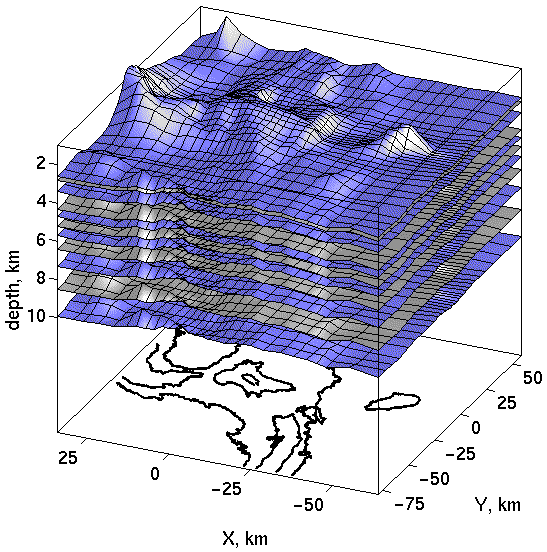

• Fig Tomographic Model PS File

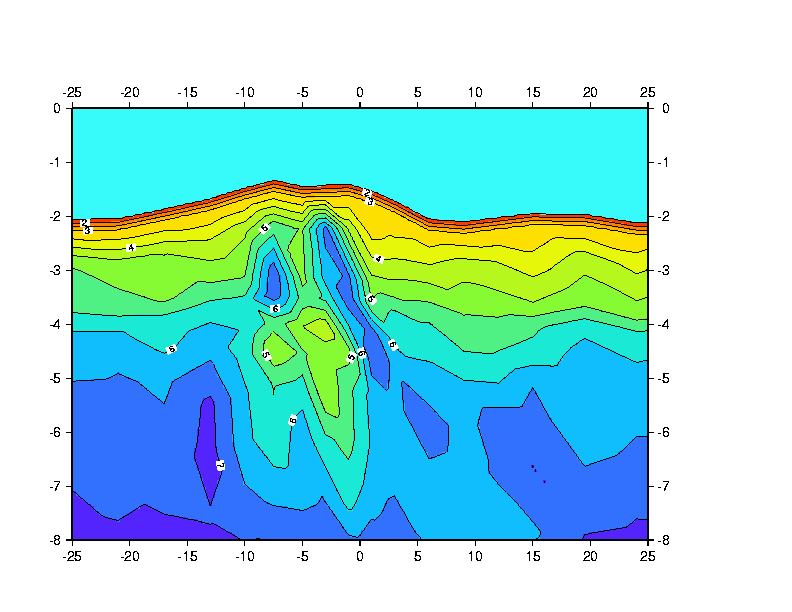

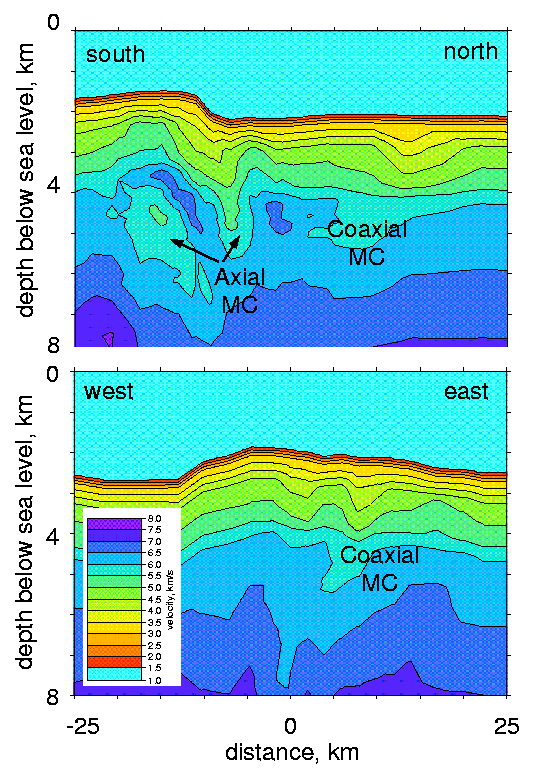

• Fig Sample Cross-Section PS File

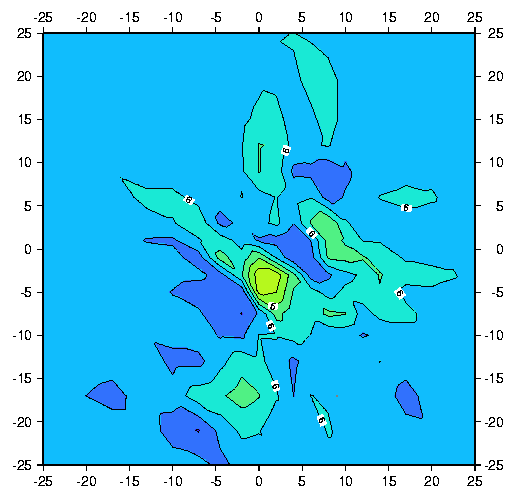

• Fig Sample Horizontal Slice PS File
• Fig Magma Interpretation PS File

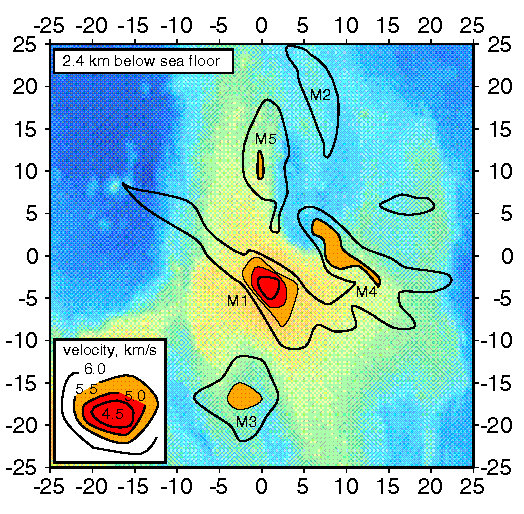

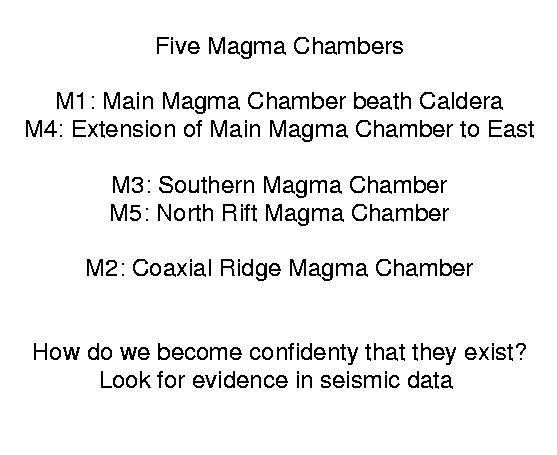

• Fig 5 Magma Chambers PS File

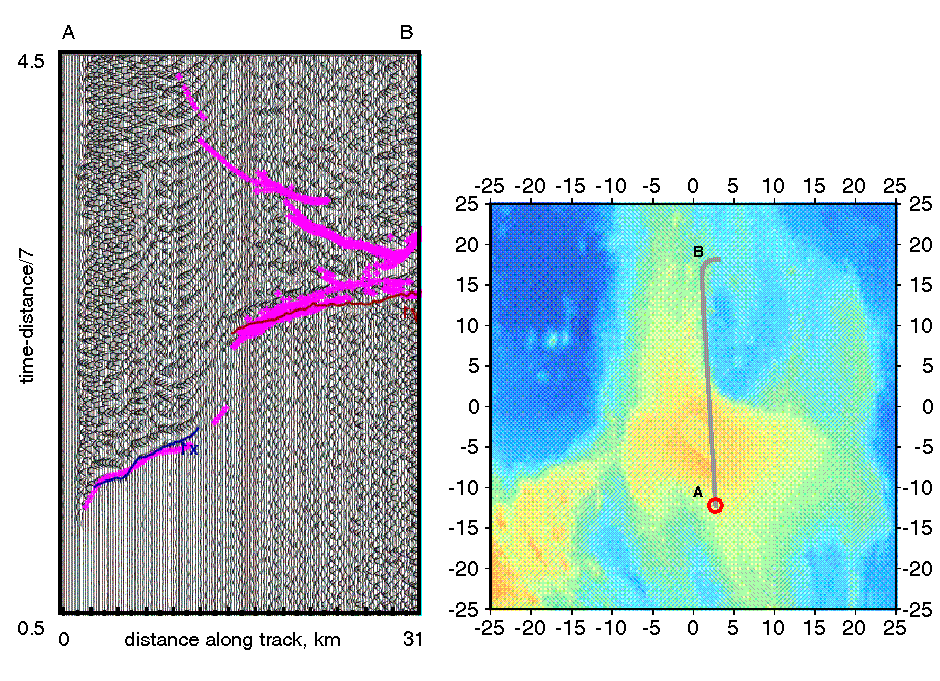

• Fig Evidence for Main Magma Chamber (M1) PS File

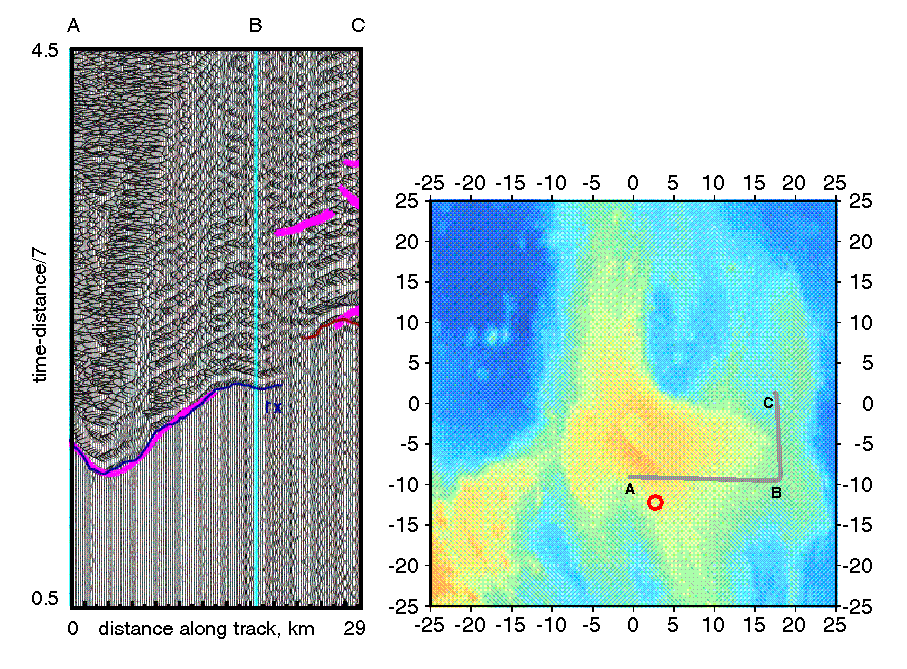

• Fig Evidence for its Eastward Extension (M4) PS File

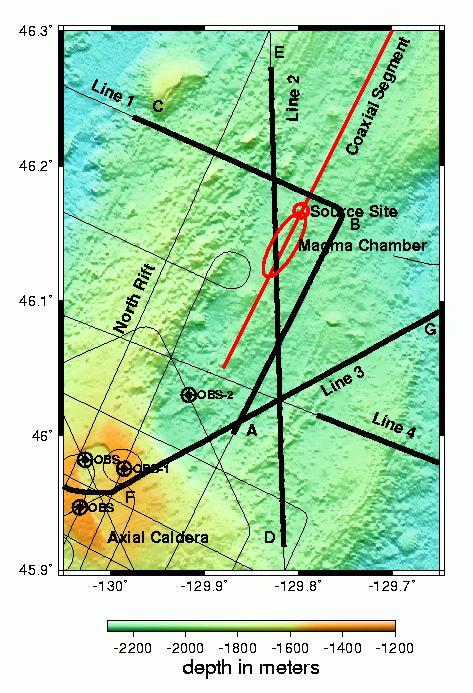

• Fig Coaxial Segment Orientation Map PS File
• Fig Evidence for Coaxial Magma Chamber (M2) PS File

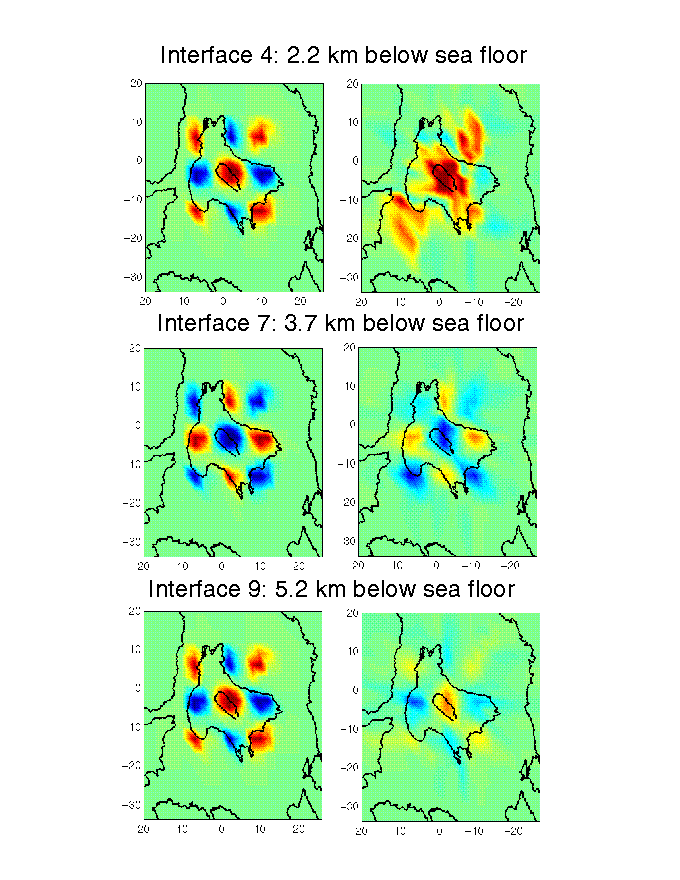

• Fig Resolution Test PS File
• Fig What Can be Learned ? PS File

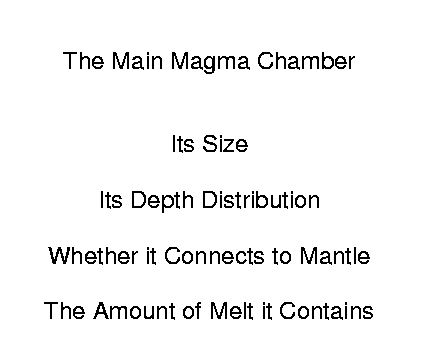

• Fig The Main Magma Chamber PS File

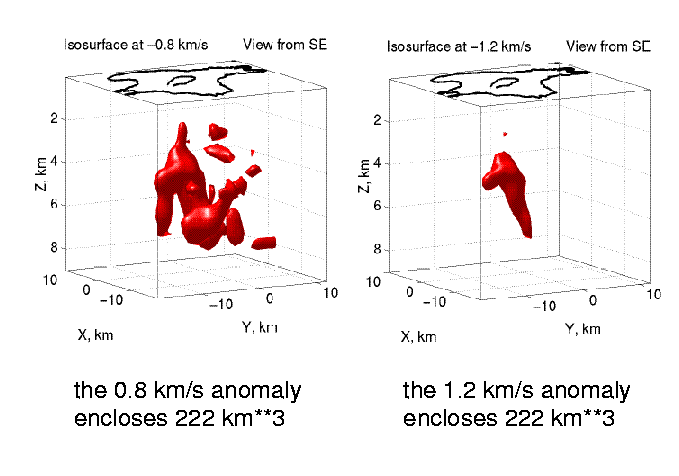

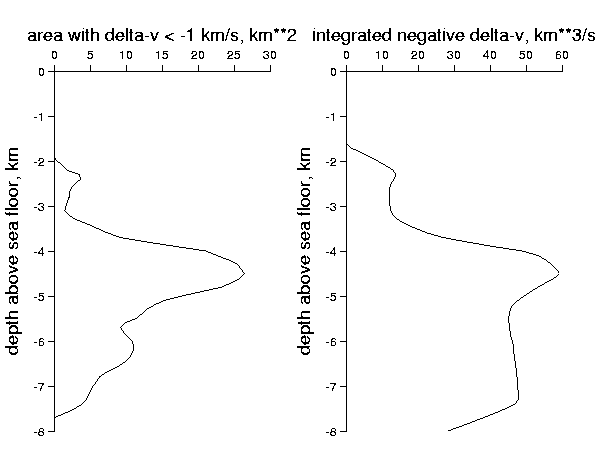

• Fig Volume of Main Magma Chamber PS File
• Fig Depth Distribution PS File

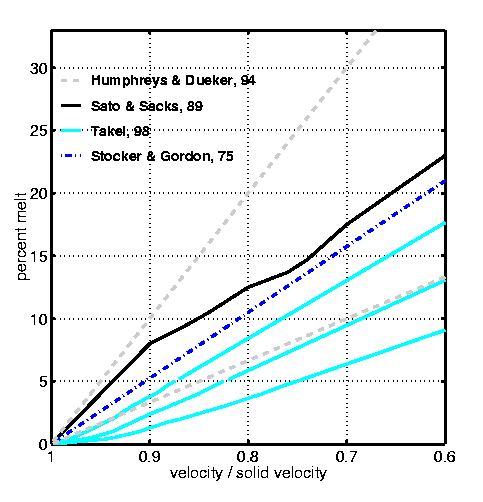

• Fig Velocity vs. Percent Melt PS File

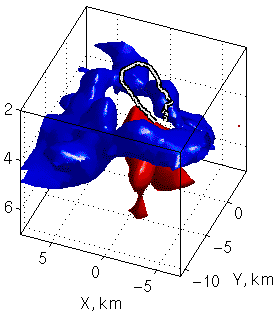

• Fig High Velocity Ring at Top PS File

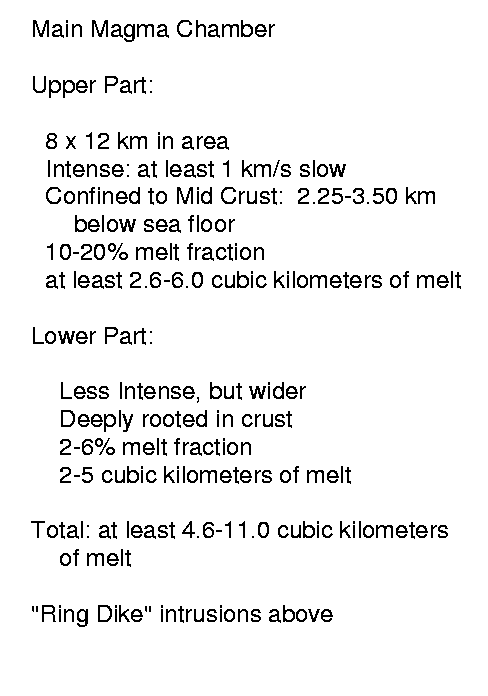

• Fig Description of Main Magma Chamber PS File
• Fig Coax Cross Sections PS File

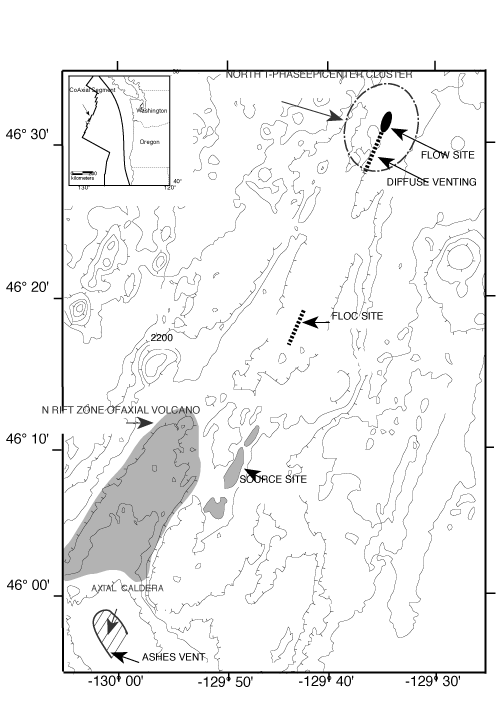

• Fig Coaxial 1993 Eruption Sites PS File
• Fig Sr isotope plot PS File
• Fig Description of Coaxial Magma Chamber PS File

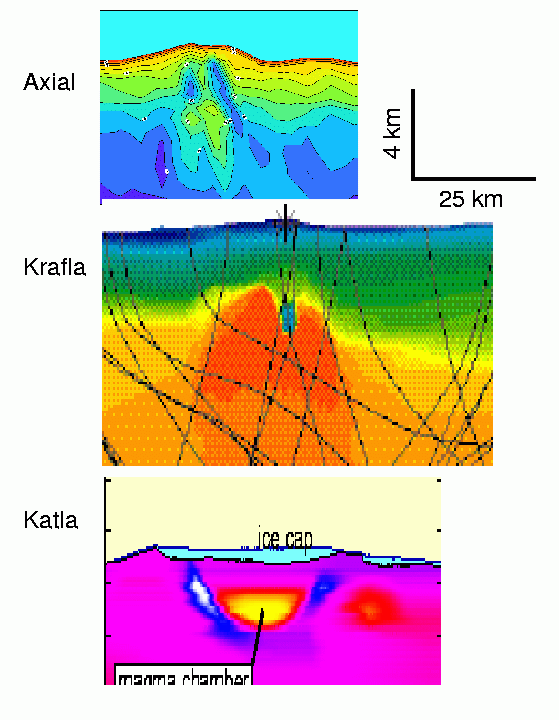

• Fig Comparisons with Iceland PS File

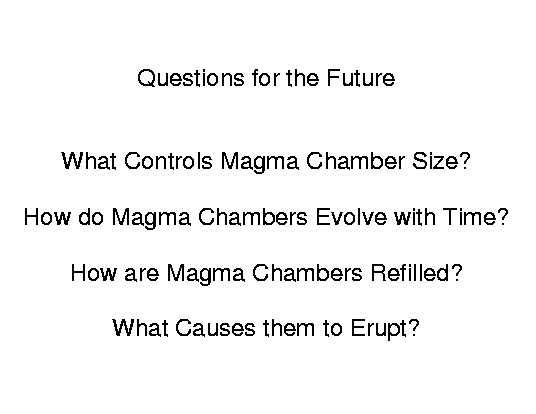

• Fig Questions for the Future PS File
