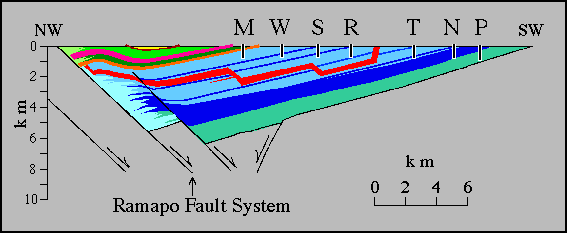

CROSS SECTION OF THE NEWARK BASIN

M = Martinsville no. 1 core; W = Weston Canl no. 1 & 2; S = Somerset no. 1 & 2; R = Rutgers no. 1 & 2; T = Titusville no. 1 & 2; N = Nursery no. 1; P = Princeton no. 1 & 2

Stockton Fm. Lockatong Fm. Passaic Fm. Orange Mt. Basalt Feltville Fm.
Preakness Basalt Towaco Fm. Hook Mt. Basalt Boonton Fm. Conglomerates
Palisade sill

Diagramatic concept of the offset drilling method for the Newark Basin Coring Project (NBCP) cores. The sites are selected so that coring is spudded in a known stratigraphic marker bed and then proceeds to another mapped unit near the bottom of the hole. The next site is picked to spud into marker bed encountered near the base of the previous core hole. The sites were planned so that there was about 25% overlap between stratigraphically adjacent cores.

DETAIL OF ACTUAL CROSS SECTIONS FROM WHICH CORES CAME

A Northeastern transect (A - A' in C); B Southwtern transect (B- B' in C); C Map of the Newark basin showing positions of two core transects (A and B) and positions of core holes (Figure adapted from Olsen, et al., 1996).
